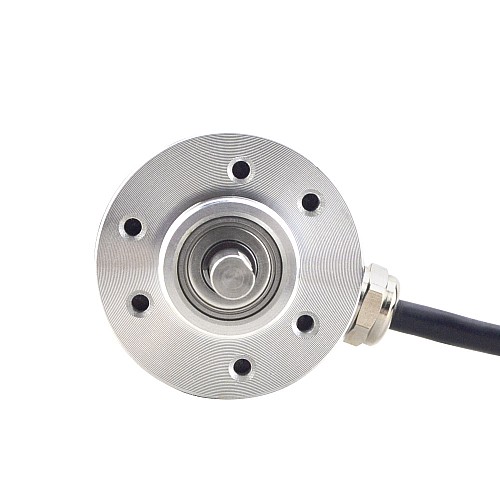

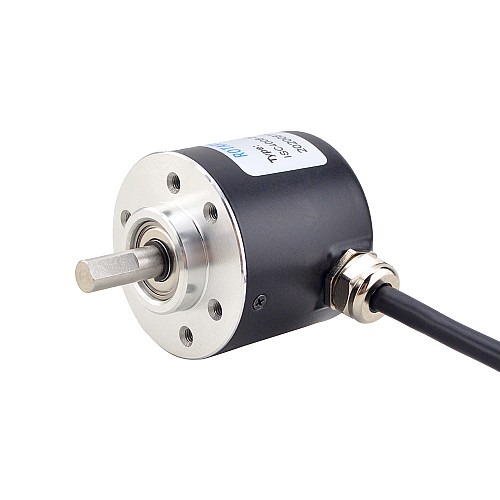

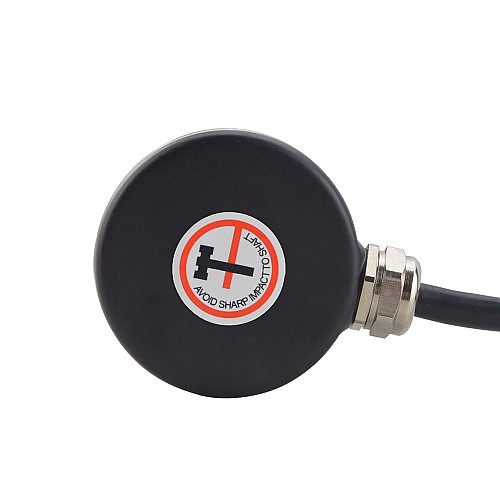

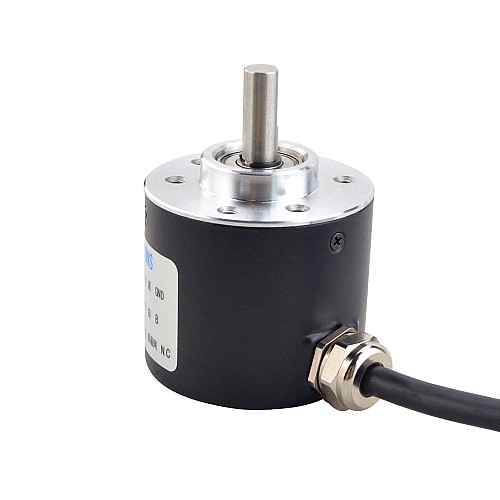

600PPR Incremental Rotary Encoder ABZ 3-Channel 6mm Solid Shaft ISC4006

Encoder Specification

• Output Circuit Type: Push-Pull (Single-Ended)
• Controlled By: Encoder Interface
• Encoder Resolution: 600PPR
• Output Signal Channels: 3

Electrical Specification

• Supply Voltage Min: 5 VDC
• Supply Voltage Max: 24 VDC
• Output Current: ≤60 mA
• Output High Voltage: ≥2.5 V
• Output Low Voltage: ≤0.3 V
• Output Frequency Max: 100 KHZ

Physical Specification

• Shaft Diameter: 6 mm
• Operating Temperature Min: -20 ℃
• Operating Temperature Max: 85 ℃

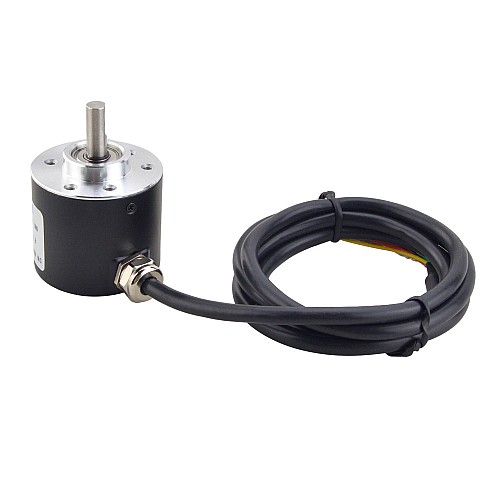

• Cable Length: 1 m
