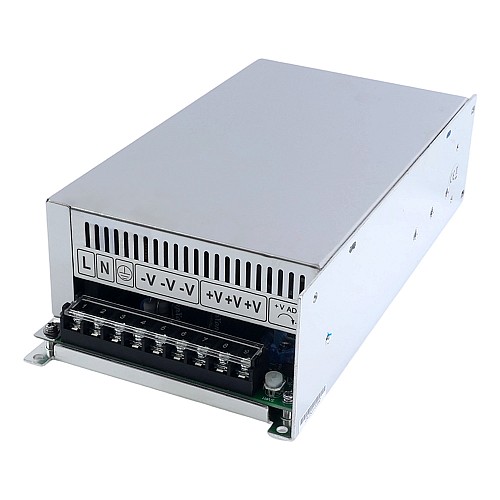

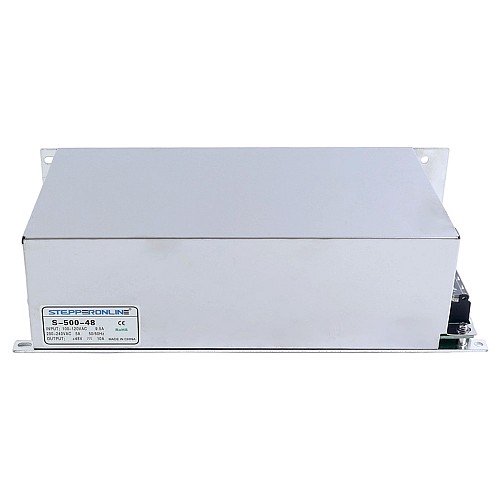

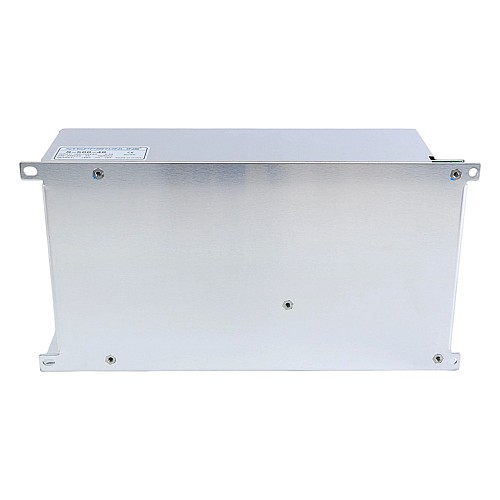

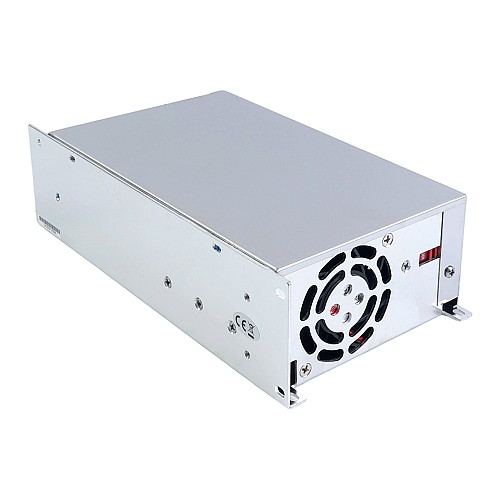

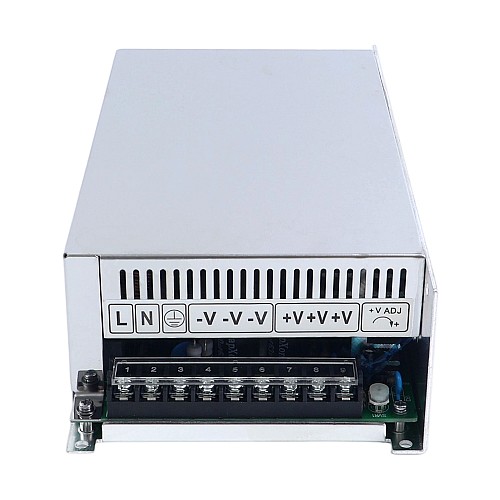

500W 48V 10.5A 115/230V Switching Power Supply Stepper Motor CNC Router Kits

0 reviews - Write a review

A$74.06

5 + A$71.52

10 + A$69.17

50 + A$66.94

100 + A$64.88

In Stock: 200
Brand: STEPPERONLINE
Model: S-500-48
Gross Weight: 1.55kg
Certificated: ISO, CE

Click country for live inventory

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

This professional 500W 48V 10.5A Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo System.
Powerful functions(eg. PWM control) and professional designs (Built-in big fan for cooling) ensure high efficiency and high reliability of the power supply. Low cost also makes it more acceptable for general usage.

Key Features

48V DC 10.5A output
AC input voltage range: 90~135VAC/180~264VAC
High efficiency low cost

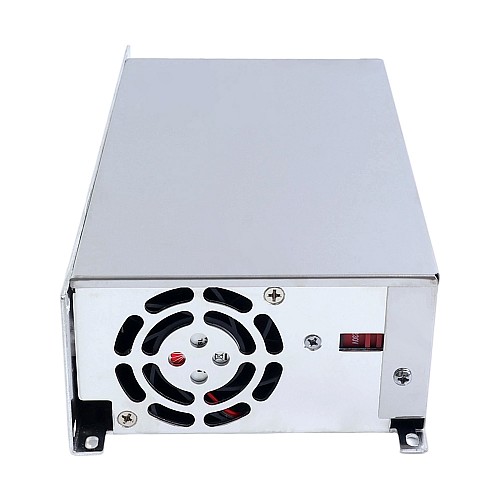

Forced air cooling by built-in DC fan
Low output ripple and yawp
Over current, over voltage, short circuit and overheat protections
215*115*50mm (L*W*H)

Electrical Specification
Input Voltage(V)	92 - 132VAC/ 175 - 264VAC
Max. Output Current(A)	10.5
Power Supply Specification
Brand	STEPPERONLINE
Output Voltage(VDC)	48
Power(W)	500
Physical Specification
Inventory Method	Dedicated Inventory
Weight(g)	1500
