4 Axis CNC Router Kit 3.1Nm(439oz.in) Nema 24 Stepper Motor & Driver

Discontinued

4 Axis CNC Router Kit 3.1Nm(439oz.in) Nema 24 Stepper Motor & Driver

0 reviews - Write a review

A$0.00

In Stock: 1
Model: 4-DM542T-24HS34
Gross Weight: 9.58kg
Certificated: ISO, CE, UKCA, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

This CNC kit included:

4 x Digital Stepper Drive 1.0-4.2A 20-50VDC for Nema 17, 23, 24 Stepper Motor
4 x 3.1Nm(439oz.in) of Nema 24 Stepper Motor
2 x 250W 36V 7A 115/230V Switching Power Supply

Driver Specification

Input voltage 20-50VDC
Anti-Resonance provides optimal torque and nulls mid-range instability
Motor auto-identification and parameter auto-configuration when power on, offer optimal responses with different motors
Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
15 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000
Soft-start with no "jump" when powered on
8 selectable peak current including 1.00A, 1.46A, 1.91A, 2.37A, 2.84A, 3.31A, 3.76A, 4.20A
Pulse input frequency up to 200KHz, TTL compatible and optically isolated input
Automatic idle-current reduction
Suitable for 2-phase and 4-phase motors
Support PUL/DIR mode
Over-voltage and over-current protections

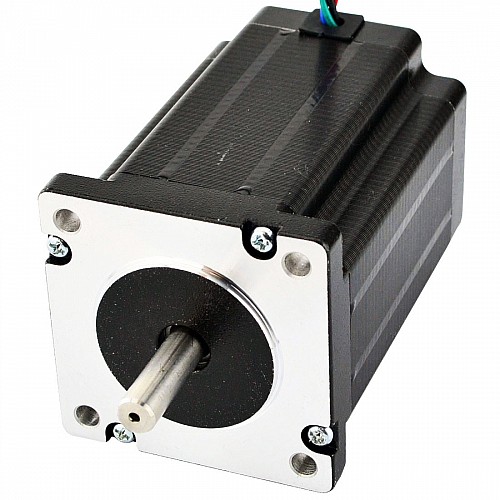

Motor Specification

Manufacturer Part Number: 24HS34-3504D
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 3.1Nm(439oz.in)
Rated Current/phase: 3.5A
Phase Resistance: 1.1ohms
Inductance: 5.6mH±20%(1KHz)
Frame Size: 60 x 60mm
Body Length: 88mm
Shaft Diameter: Φ8mm
Shaft Length: 24mm
D-cut Length: 20mm
Number of Leads: 4
Lead Length: 600mm
Weight: 1.34kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

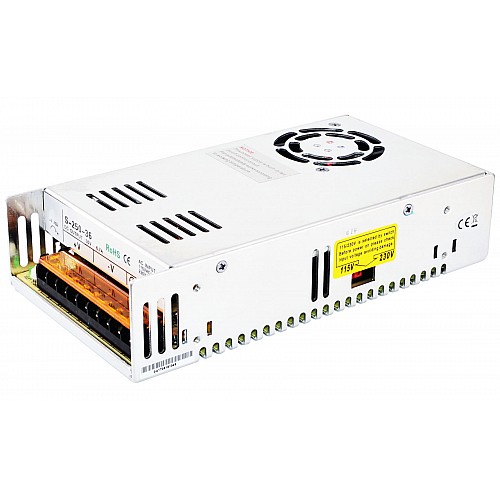

Power Specification

36V DC 7A output
AC input voltage range: 90~132V/180~264VAC
115V/230V AC selected by switch
High efficiency low cost
Forced air cooling by built-in DC fan
Low output ripple and yawp
Over current, over voltage, short circuit and overheat protections
215*115*50mm(L*W*H)

Resources

Motor Datasheet: 24HS34-3504D.pdf
Motor Torque Curve: 24HS34-3504D_Torque_Curve.pdf
Driver Manual: DM542T_V4.0.pdf
Power Supply Manual: S-250-36.pdf

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 4-DM542T-S30.

Product Type
Product Type	Open Loop Stepper Kit
Electrical Specification
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	310
Holding Torque(oz.in)	439
Input Voltage Reference(V)	24 - 48DC
No. of Phase	2
Number of Axes	4
Physical Specification
Frame Size(mm)	Nema 24 (60 x 60)
Output Shaft Type	D
Product Series	TS Series
Shaft Diameter(mm)	8

File	Size
24HS34-3504D.STEP	1.59MB	Download
24HS34-3504D_Torque_Curve.pdf	164.55KB	Download
DM542T_V4.0.pdf	861.28KB	Download
DM542T.pdf	686.95KB	Download
DM542T.STEP	2.43MB	Download
S-250-36.pdf	127.68KB	Download
DM542T(V4.0).STEP	1.85MB	Download
