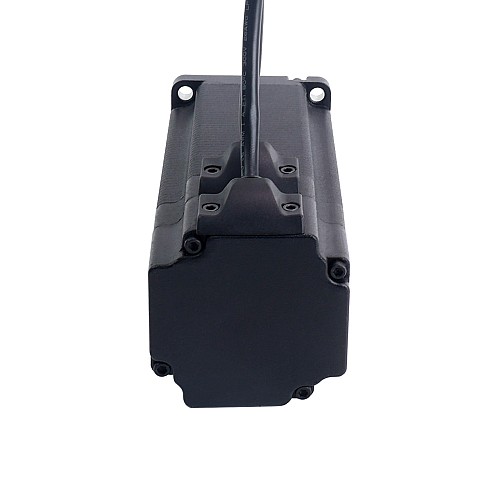

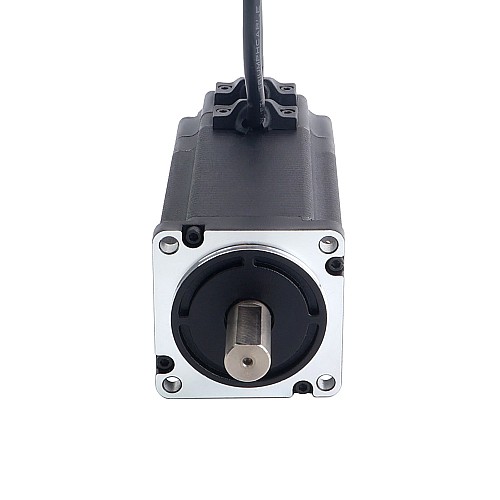

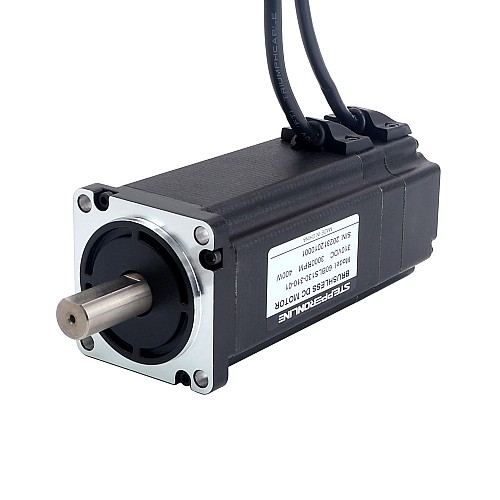

310V 3000RPM 1.27Nm 400W 1.8A Square 60x60x131mm Brushless DC Motor

0 reviews - Write a review

A$101.44

5 + A$98.30

10 + A$95.34

50 + A$92.56

100 + A$89.93

In Stock: 200
Model: 60BLS130-310-01
Gross Weight: 2.19kg
Certificated: ISO, CE

Click country for live inventory

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

This high-voltage brushless DC motor is made of high-quality materials and has a sturdy construction. High-voltage version of brushless DC delivers efficient performance and consistent torque output.

Electrical Specification

Manufacturer Part Number: 60BLS130-310-01
Phase: 3
Poles: 8
Rated Power: 400W
Rated Voltage: 310VDC
Rated Speed: 3000±10%RPM
Rated Current: 1.8±10%A
Rated Torque: 1.27Nm(179.85oz.in)
Insulation Class: B 130°C[266°F]
Resistance/phase: 18.87±10%Ohms
Inductance/phase: 25.6±20%mH

Physical Specification

Frame Size: 60 x 60mm
Body Length: 131mm
Shaft Diameter: Φ14mm
Shaft Length: 30mm
D-cut Length: 25mm
Number of Leads: 9
Lead Length: 1000mm
Weight: 1.99kg

Connection

Motor				Hall
U	V	W	PE	+5V	GND	Hall A	Hall B	Hall C
Yellow	Green	Blue	Yellow/Green	Red	Black	Yellow	Green	Blue

Product Type
Product Type	BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	1.8
Rated Power(W)	400
Rated Speed(rpm)	3000
Rated Torque(Nm)	1.27
Rated Voltage(V)	310
Physical Specification
Body Length(mm)	131
Frame Size(mm)	60 x 60
Inventory Method	Shared Inventory
IP Rating	20
Output Shaft Type	D
Shaft Diameter(mm)	14
Shaft Length(mm)	30
With Gearbox	No
