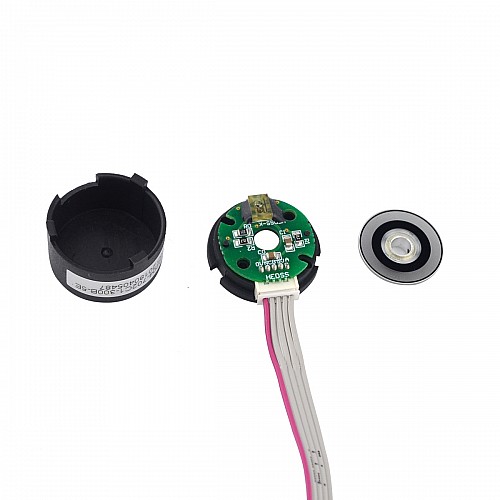

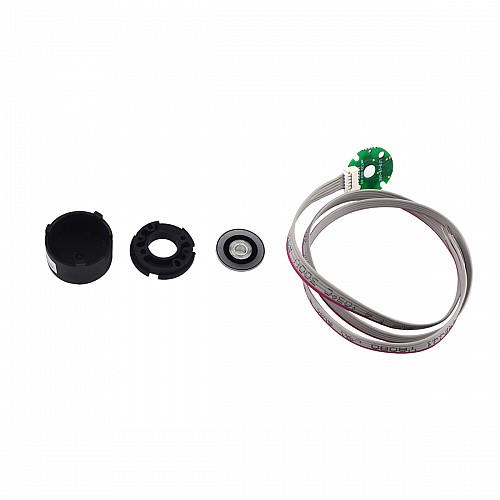

300PPR Optical Rotary Encoder AB 2-Channel ID 4mm for HKT22 Stepper Motor
A$32.22
5 + A$30.99
10 + A$29.86
50 + A$28.80
100 + A$27.82
- In Stock: 200
- Model: HKT2204-702C1-300B-5E
- Gross Weight: 0.14kg
- Certificated: ISO
Click country for live inventory
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.
Customers from all countries are also welcome to choose the China warehouse.
Encoder Specification
- Output Circuit Type: Push-Pull (Single-Ended)
- Controlled By: Encoder Interface
- Encoder Resolution: 300PPR
- Output Signal Channels: 2
Electrical Specification
- Supply Voltage Min: 5VDC
- Supply Voltage Max: 5VDC
- Output Current: ≤20mA
- Output High Voltage: ≥3.4VDC
- Output Low Voltage: ≤0.3VDC
- Output Frequency Max: 30KHZ
Physical Specification
- Shaft Diameter: 4mm
- Operating Temperature Min: -20℃
- Operating Temperature Max: 85℃
- Cable Length: 0.5m
| Electrical Specification | |
| Encoder Resolution | 300ppr |
| Encoder Type | Optical |
| Physical Specification | |
| Inventory Method | Dedicated Inventory |
| File | Size | |
|---|---|---|
| HKT22.pdf | 2.34MB | Download |
