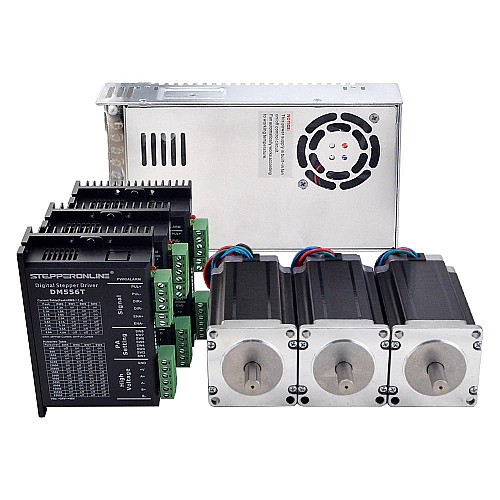

3 Axis Stepper CNC Kit 3.0Nm(425oz.in) 4.2A Nema 23 Stepper Motor & Driver DM556T & 48V Power Supply

• 3 x Digital Stepper Drive 1.8~5.6A 20-50VDC DM556T
• 3 x Nema 23 Bipolar 3Nm(425oz.in) 4.2A 57x57x114mm 4 Wires Stepper Motor CNC
• 1 x 500W 48V 10.5A 115/230V Switching Power Supply Stepper Motor CNC Router Kits

Motor Specification

• Manufacturer Part Number: 23HS45-4204S
• Motor Type: Bipolar Stepper
• Step Angle: 1.8deg
• Holding Torque: 3.0Nm(425oz.in)
• Rated Current/phase: 4.2A
• Phase Resistance: 0.9ohms
• Inductance: 3.8mH±20%(1KHz)
• Frame Size: 57 x 57mm
• Body Length: 113mm
• Shaft Diameter: Φ10mm
• Shaft Length: 24mm
• D-cut Length: 20mm
• Number of Leads: 4
• Lead Length: 400mm

Connection

Driver Specification

• Anti-Resonance for optimal torque, extra smooth motion, low motor heating and noise
• Motor auto-identification and parameter auto-configuration for optimal torque from wide-range motors
• Step & direction(PUL/DIR) control
• Multi-Stepping for smooth motor movement
• TTL compatible and optically isolated inputs
• Input voltage 20-50VDC
• 16 selectable micro-step resolutions of 400-25,600 via DIP switches
• 8 selectable output current settings of 1.8 - 5.6A via DIP switches
• Soft-start with no "jump" when powered on
• Pulse input frequency up to 200KHz
• Automatic idle-current reduction
• Protections for over-voltage and over-current

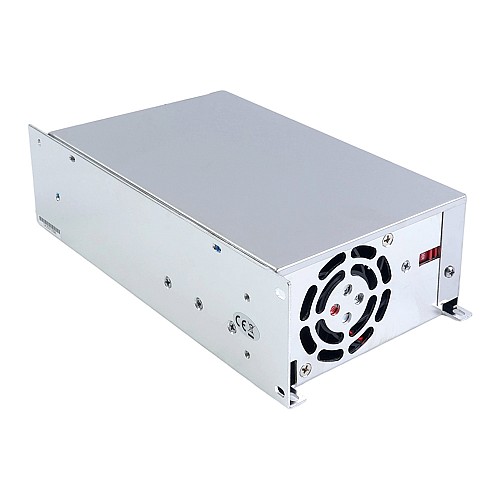

Power Specification

• 48V DC 10.5A output
• AC input voltage range: 90~135VAC/180~264VAC
• High efficiency low cost
• Forced air cooling by built-in DC fan
• Low output ripple and yawp
• Over current, over voltage, short circuit and overheat protections
• 215*115*50mm(L*W*H)
