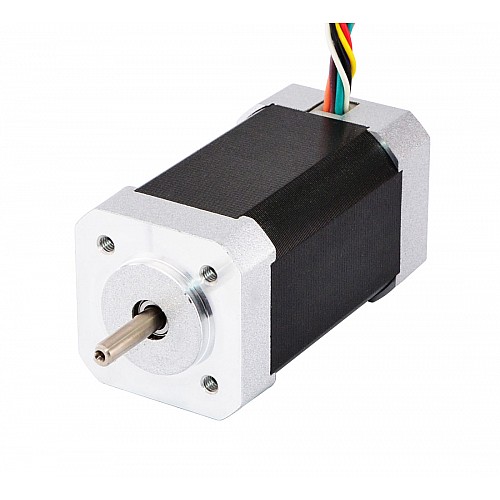

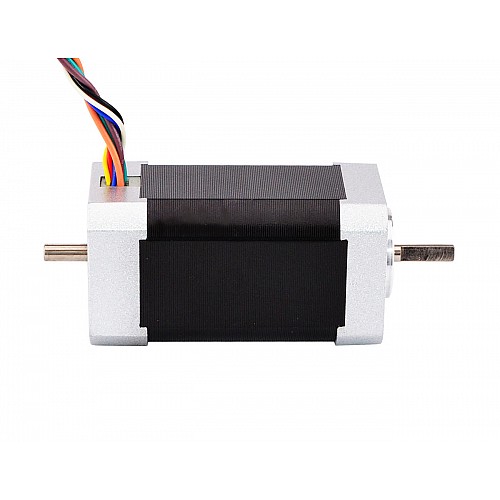

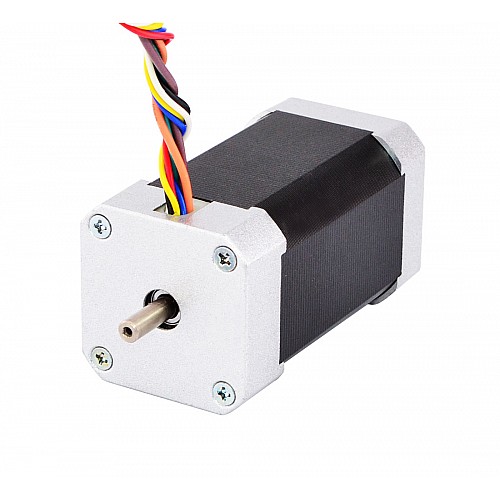

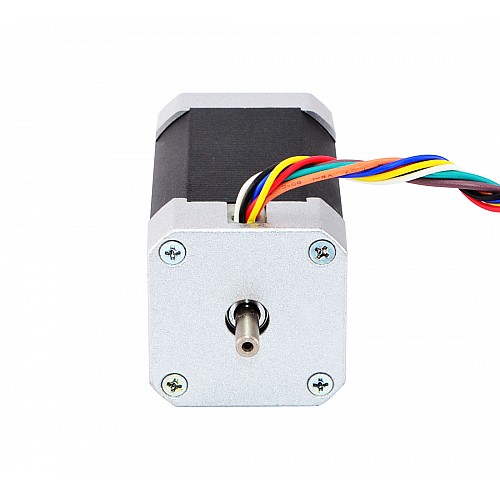

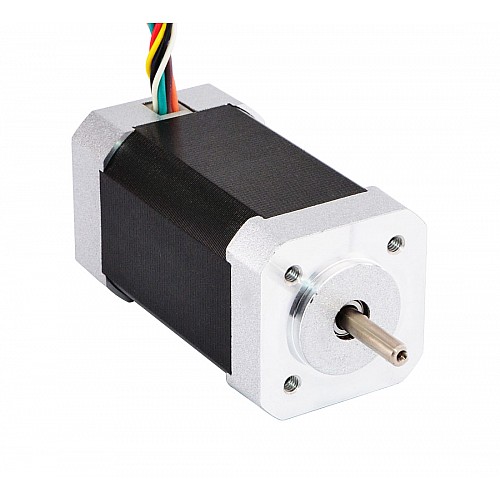

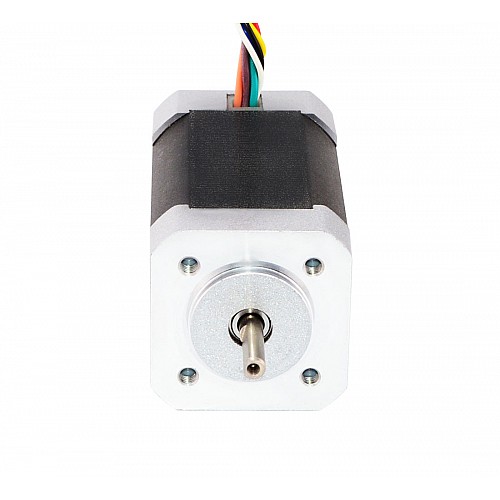

24V 4000RPM 0.185Nm 77.5W 4.8A 42x42x79mm Brushless DC Motor

Discontinued

24V 4000RPM 0.185Nm 77.5W 4.8A 42x42x79mm Brushless DC Motor

0 reviews - Write a review

A$0.00

In Stock: 1
Model: 42BLS80-24-01
Gross Weight: 0.66kg
Certificated: ISO, CE

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

Electrical Specification

Manufacturer Part Number: 42BLS80-24-01
Phase: 3
Poles: 4
Rated Voltage: 24V
Rated Speed: 4000±10%RPM
Noload Speed: 5900RPM
Rated Torque: 0.185Nm(26.2oz.in)
Rated Current: 4.8±10%A
Noload Current: 0.5A
Rated Power: 77.5W
Insulation Class: B 130°C[266°F]
Insulation Resistance: 100MΩ Min @500VDC
Dielectric Strength Test: 500VAC for 1 Minute

Physical Specification

Frame Size: 42x42mm
Body Length: 79.2mm
Shaft Diameter: Φ5mm
Shaft Length: 20mm
Shaft Type: D-cut
D-cut Length: 15mm
Rear Shaft Length: 13.5mm
Rear Shaft Diameter: Φ5mm
Number of Leads: 8
Lead Length: 300mm
Bearing Type: NMB Ball Bearing, C3
Sensor: Hall Sensor

Connection

U	V	W	+5V	GND	A	B	C
ORG	GRN	BRW	RED	BLK	YEL	WHT	BLU

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 42BSA78-24-01.

Product Type
Product Type	BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	4.8
Rated Power(W)	77.5
Rated Speed(rpm)	4000
Rated Torque(Nm)	0.185
Rated Voltage(V)	24
Physical Specification
Body Length(mm)	79.2
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	20
Output Shaft Type	O
Shaft Diameter(mm)	5
Shaft Length(mm)	20
With Gearbox	No
