220V 1.5KW 80x73x175.5mm Air Cooled Spindle Motor and 2HP 1.5KW 7.0A Variable Frequency Drive Kit

0 reviews - Write a review

A$0.00

In Stock: 1
Model: VSK-ASL1.5B
Gross Weight: 5.42kg
Certificated: ISO, CE

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

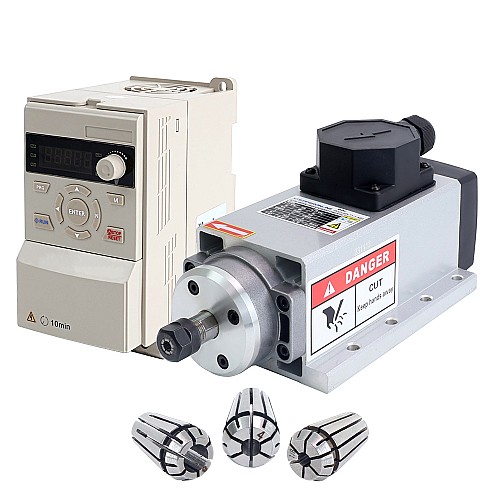

This spindle kit includes:

1 x GDZL80x73-1.5B4 Spindle Motor Air Cooled 220V 1.5KW 24000RPM 400Hz ER11 Collet
1 x EV51S20015BX0 EV51 Series VFD 2HP 1.5KW 7.0A Single Phase 220V
1 x ER11 Φ3.175mm High Precision Collet
1 x ER11 Φ4mm High Precision Collet
1 x ER11 Φ6mm High Precision Collet

Spindle Motor Specification

Manufacturer Part Number: GDZL80x73-1.5B4
Material: Stainless steel
Power: 1.5KW
Voltage: 220VAC
Current: 5.0A
Frequency: 0 - 400Hz
Speed: 0 - 24000RPM
Cooling: Air Cooled
Bearing Lubrication: Grease
Collet size: ER11 Collet
Weight: 5kg
Size: 175.5 x 80 x 73mm(Length: 175.5mm, Width: 80mm, Height: 73mm)

Variable Frequency Drive Specification

Manufacturer Part Number: EV51S20015BX0
Rated Input Voltage: 1 Phase 220V
Allowed Input Voltage: 180 - 260VAC
Input Frequency: 50/60Hz(+/-5%)
Input Current: 8.2A
Power: 2HP(1.5KW)
Output Current: 7.0A
Output Voltage: 0 - Rated Input Voltage
Output Frequency: 0 - 1000Hz
Output Capacity: 150% Rated Current 60s, 180% Rated Current 2s

Operating Environment
Cooling Method	Air cooled
Product Type
Product Type	Motor & VFD Kit
Spindle Motor Specification
Body Length(mm)	175.5
Collet Size	ER11
Power(Kw)	1.5
Shape	Square
Voltage(VAC)	220
Variable Frequency Drive Specification
Input Voltage	1PH 220VAC
Output Power	2HP / 1.5KW
Electrical Specification
Frequency(Hz)	0 - 400
Physical Specification
Inventory Method	Shared Inventory
