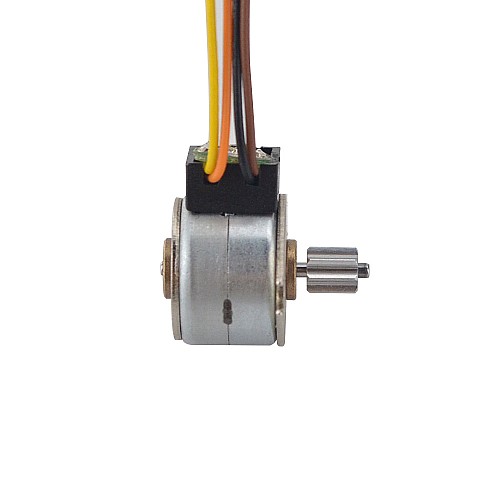

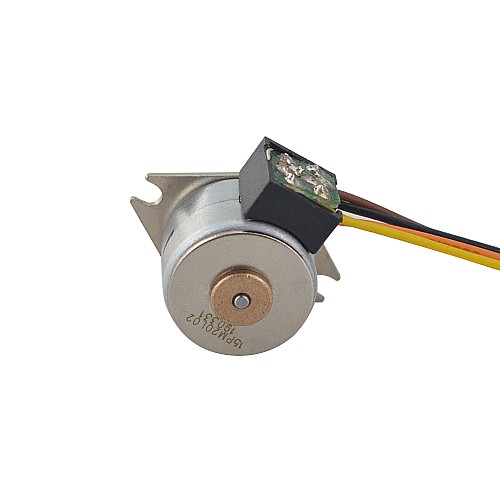

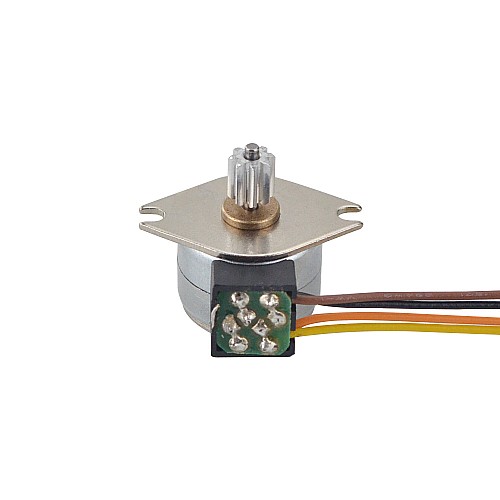

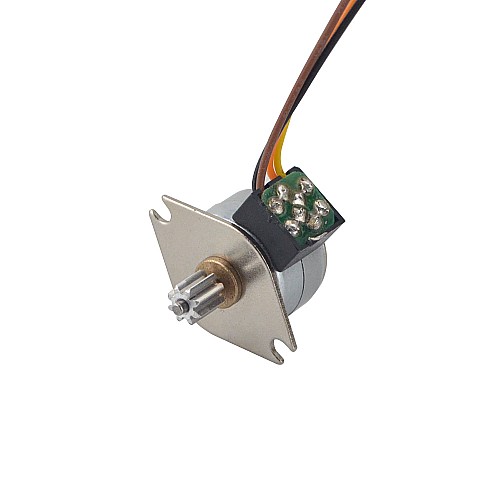

Φ15x12mm PM Stepper motor 18deg 3.43mN.m(0.486oz.in) 0.4A 4 Wires

0 reviews - Write a review

A$0.00

In Stock: 1
Model: 15PM20L02
Gross Weight: 0.06kg
Certificated: ISO, CE

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

Electrical Specification

Manufacturer Part Number: 15PM20L02
Motor Type: PM Stepper
Phase: 2
Step Angle: 18deg
Rated Current/phase: 0.4A
Holding Torque: 3.43mN.m(0.486oz.in)
Detent Torque: 0.98mN.m(0.139oz.in)
Phase Resistance: 30.5±7%ohms(20℃)
Insulation Class: B 130°C[266°F]
Inductance: 6mH±20%(1KHz)
Rotor Inertia: Less than 1.0g.cm²
Life: 3000h MIN(20℃,500 pps)

Physical Specification

Frame Size: Φ15mm
Body Length: 12mm
Shaft Diameter: Φ1.5mm
Shaft Length: 8mm

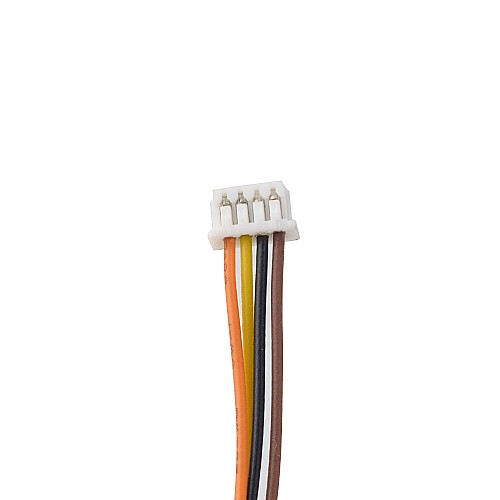

Number of Leads: 4 with connector Molex 51021 1.25
Lead Length: 90mm
Weight: 10.3g

Connection

A+	A-	B+	B-
Black	Brown	Orange	Yellow

Product Type
Product Type	PM Rotary Stepper Motor
Electrical Specification
Detent Torque(mN.m)	0.98
Detent Torque(oz.in)	0.139
Holding Torque(oz.in)	0.486
Inductance(mH)	6
No. of Phase	2
Phase Resistance(ohms)	30.5
Rated Current(A)	0.4
Step Angle(deg.)	18
Physical Specification
Frame Size(mm)	Φ15
Inventory Method	Dedicated Inventory
IP Rating	30
Lead Length(mm)	90
No. of Lead	4
Shaft Diameter(mm)	1.5
Shaft Length(mm)	8
