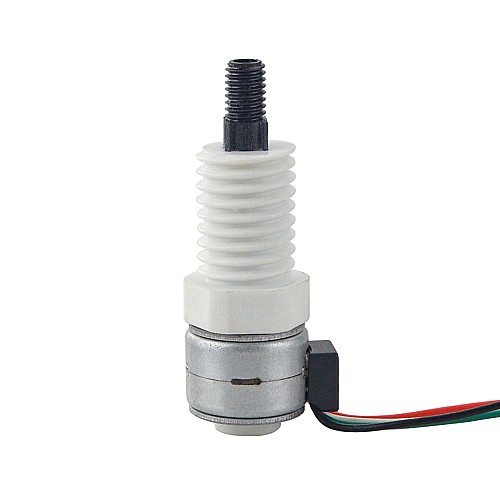

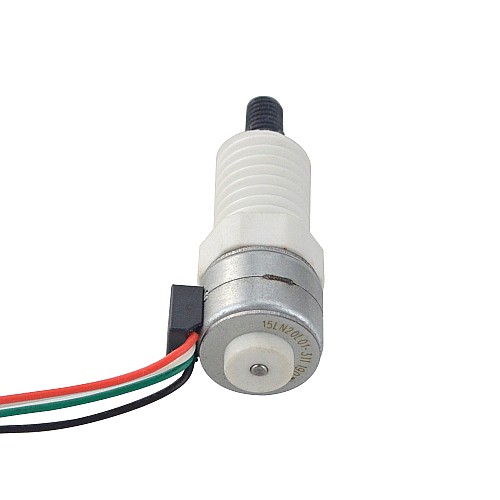

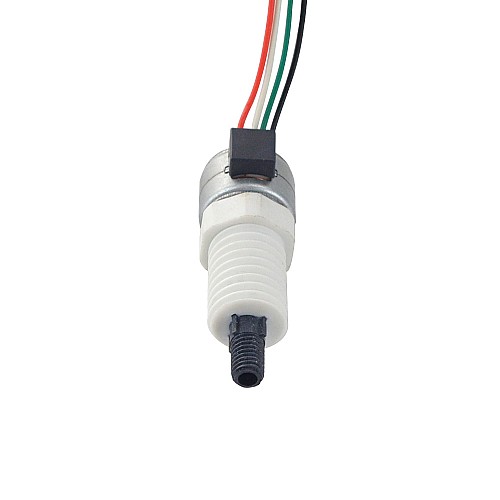

Φ15x11.1mm PM Captive Linear Stepper Motor 0.167A Lead 0.4mm/0.016" Travel 12mm

0 reviews - Write a review

A$0.00

In Stock: 1
Model: 15LN20L01-311
Gross Weight: 0.06kg
Certificated: ISO, CE

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

Electrical Specification

Manufacturer Part Number: 15LN20L01-311
Motor Type: PM Captive Linear Stepper
Phase: 2
Step Angle: 18deg
Rated Current/phase: 0.167A
Thrust: 9N(200Hz)
Phase Resistance: 30±7%ohms(20℃)
Inductance: 9.5mH±20%(1KHz)
IP Protection: IP30
Life: 20000cycles

Physical Specification

Frame Size: Φ15mm
Body Length: 11.1mm
Stroke Length: 12mm(0.472")
Lead Screw Diameter: Φ2mm(0.079")
Lead/Revolution: 0.4mm(0.016")
Lead/Step: 0.02mm(0.000787")
Number of Leads: 4
Lead Length: 40mm
Weight: 13.7g

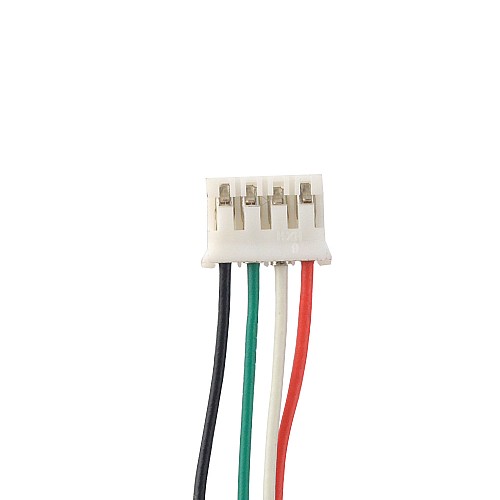

Connection

A+	A-	B+	B-
White	Red	Black	Green

Electrical Specification
Inductance(mH)	9.5
No. of Phase	2
Phase Resistance(ohms)	30
Rated Current(A)	0.167
Step Angle(deg.)	18
Physical Specification
Body Length(mm)	11.1
Frame Size(mm)	Φ15
Inventory Method	Dedicated Inventory
IP Rating	30
Lead Length(mm)	40
Lead Screw Diameter(mm)	2
Lead Travel/Revolution(mm)	0.4
Lead Travel/Step(mm)	0.02
Linear Motor Type	PM Captive
No. of Lead	4
Travel(mm)	12
