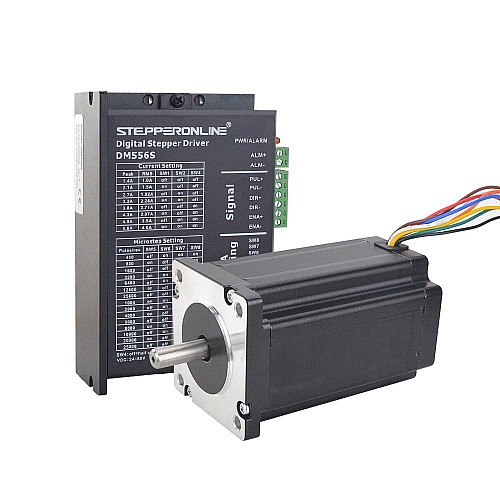

1 Axis Stepper CNC Kit 4Nm (566oz.in) Nema 24 Stepper Motor & Digital Stepper Driver

• 1 x Digital Stepper Driver RMS Current Max 4A 24-60VDC
• 1 x Dual Shaft Nema 24 CNC Stepper Motor 4Nm (566 oz.in) 60x60x100mm 8 Wires

Motor Specification

• Manufacturer Part Number: 24HS39-3008D
• Motor Type: Unipolar/Bipolar
• Step Angle: 1.8 deg
• Holding Torque(Bipolar): 4.0Nm(566oz.in)
• Holding Torque(Unipolar): 2.8Nm(397oz.in)
• Rated Current(Bipolar Serial): 2.12A
• Rated Current(Bipolar Parallel): 4.24A
• Rated Current(Unipolar): 3.0A
• Phase Resistance(Bipolar Serial): 2.8ohms
• Phase Resistance(Bipolar Parallel): 0.7ohms
• Phase Resistance(Unipolar): 1.4ohms
• Inductance(Bipolar Serial): 12.0mH ± 20%(1KHz)
• Inductance(Bipolar Parallel): 3.0mH ± 20%(1KHz)
• Inductance(Unipolar): 3.0mH ± 20%(1KHz)
• Frame Size: 60 x 60mm
• Body Length: 100mm
• Shaft Diameter: Φ8.0mm
• Front Shaft Length: 24mm
• Rear Shaft Length: 13mm
• D-cut Length: 20mm
• Number of Leads: 8
• Lead Length: 400mm
• Weight: 1.6kg

Connection

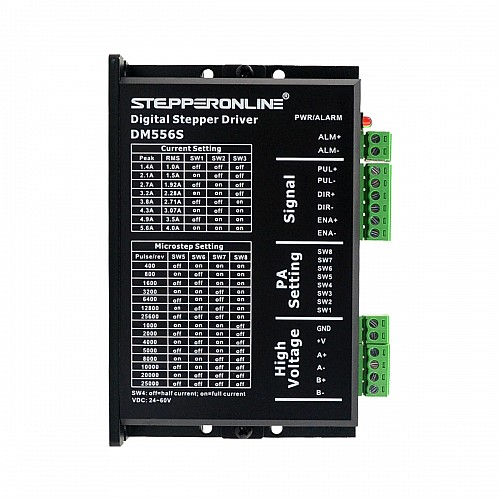

Driver Specification

• Parameter auto-setup and motor self-test
• Multi-Stepping inside, Small noise, low heat, smooth movement
• Torque compensation at high speed
• Variable current control technology, High current efficiency
• Accelerate and decelerate control inside, Great improvement in smoothness of starting or stopping the motor
• Storage the position of motor
• Optically isolated input and compatible with 5V~24V
• User-defined microsteps
• Micro-step resolutions and Output current programmable
• Over current,over voltage and under voltage protection
• Automatic detection, flexible selection of pulse edge count mode
• Green light means running while red light means protection or off line

Resources

• Motor Datasheet: 24HS39-3008D.pdf
• Driver Manual: DM556S.pdf
